Envelope Cutting Systems

Hawkes can offer you both manual and automatic envelope cutting systems designed for maximum productivity, combined with easy operation and maintenance.

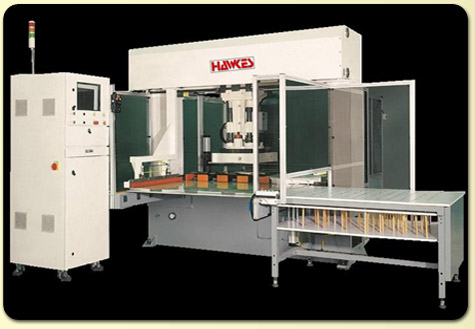

Automatic envelope cutting system EA25

Hawkes automatic envelope cutting system has many advantages:

  1. Capacity of up to 1.4million blanks per 8 hour shift with material maximum stack thickness up to 65mm.
  2. The systems memory can save over 1000 programs for fast and simple job recall.
  3. Complete job change takes less than 5 minutes.
  4. Rigid construction ensures high accuracy when cutting
  5. Can cut non-printed and pre-printed envelope blanks
  6. Option of auto-sheet feeder

Also available with the Hawkes envelope cutting system: air flotation and material side guides, pneumatic paper blank clamp and roller mechanism, precision positioning accuracy to +/-0.1mm, nesting facility, tool lubrication system, automatic cutting pad shifter, sheet removal & knock-out device, simple touch screen interface.



ISO standard air cylinders for easy maintenance



Die lubrication provides smooth cut edge and prolongs die life



Cut-part knock-out device with a cut-part collecting table



Magnetic die clamping device enables dies without backing plates to be used



Material side guide

Paper blank clamping device, air flotation in lower clamps for critical adjustment of paper stack



Pneumatic sheet removal

Roller mechanism ensures material flatness during the cutting process for better position accuracy


   SPECIFICATIONS



Model:

Hawkes EA25




Cutting Force

25 Tons




Motor

3HP




Cutting Head

620x620mm




Blank size

600x600mm




Material Size

Max 950x1450mm




Cutting stroke

180mm




Open daylight

114-294mm




Die height

70-100mm




ApproxDimensions LxWxH

4500 x 4070 x 2395mm




Approx weight

5200Kg




Please contact us today for all your requirements
